| Zirconia Sensing Oxygen Sensor |
| WB-II F |
 |
What's WB-II F
Detective element is made of Zirconia electrolyte. The main use of this sensor is for measurement of trace or low oxygen in inert gas, moreover for dirty gas such as flue gas can be used well.

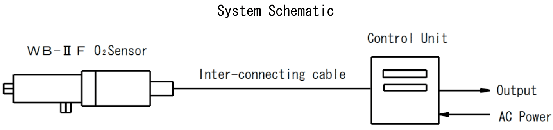

* The sensor works as oxygen analyzer together with the control unit.
|
 |
FEATURES
- Wide range application, from 1ppm to 100%O2.
- Built-in multi-filter protects detector from dirt and corrosion.
- Accepts 0.2 to 5 L/min flow rate.
- Simple structure, easy maintenance.
|
SPECIFICATIONS

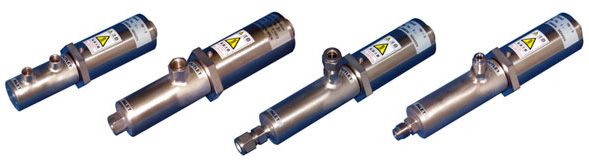

| Model |
TB-II F-P |
Rc1/8 female connector |
| TB-II F-R |
Rc1/4 female connector |
| TB-II F-S |
O.D.3/8 Swagelok |
| TB-II F-V |
4VCR fitting |
| Measuring range |
1ppm ~ 100％O2, 1 ~ 10-30atmO2 |
| Linearity |
The Larger either of less than ±1% FS or±1ppm |
| Repeatability |
The Larger either of less than ±1% FS or±1ppm |
| Response |
90% reading 10sec.(Swinging to a high density side) |
| Drift |
Less than ±2％FS/wk |
| Sample Flow Rate |
0.2~2L/min(TB-II F-P),others 0.5~5L/min |
| Sample Temp |
300°C MAX. |
| Sample pressure |
TB-II F-V 203kPa~1.33×10-3Pa (2atm~10-5Torr) |
| Others 203kPa~1.33×10-1Pa（2atm~10-3Torr） |
| Warm up time |
About 20 minutes |
|
 Click here for PDF formatted data-sheets.
|
