PORTABLE/ONLINE THERMOMETERS

WIDE RANGE INFRARED THERMOMETER

KTL series catalogPDF file
  • KTL-PRO (200~2000°C)
  • KTL-PRO-04 (300~2000°C)
  • KTL-ZERO-A (500~3000°C)
  • KTL-ZERO-B (200~1200°C)
  • KTL-ZERO-A-04 (700~3000°C)
  • KTL-ZERO-B-04 (300~1200°C)

FEATURES

  • Wide measuring ranges
  • Precision optics with zoom
  • On-line or portable use
  • Adjustable sampling rate
  • 2-way LED display of readings
  • Analog and digital outputs through the multifunction AC adopter
  • Option of wireless communication of measured data through blue tooth
KTL-PRO

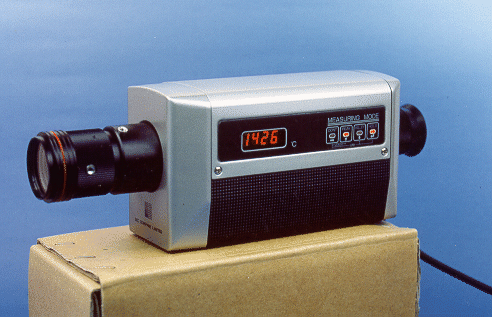

KTL standard model
(with optional pistol grip)

DESCRIPTION

KTL series infrared radiation thermometers are combination of highly durable sensor, reliable microprocessor electronic and precision camera optics. It is provided with four measuring modes Cont/Peak/Valley & Hold. Measured readings are displayed on LED both inside the viewfinder and on side panel of the thermometer. Variable sampling rate can be set from 0.01 to 1.00 seconds allowing fast response or facilitating smooth readout if target temperature is rapidly changing. Analog and digital outputs are available as standard. PC communication software is included as standard accessory.



TYPICAL APPLICATIONS
Brazing temperature control for diamond cutter chip Temperature control with flame raw Measurement in vacuum chamber
Brazing temperature control for diamond cutter chip Temperature control with flame raw Measurement in vacuum chamber
Control of high-frequency induction heating chip row Temperature management of rod stick Temperature survey of Furnace and furnace wall
Control of high-frequency induction heating chip row Temperature management of rod stick Temperature survey of Furnace and furnace wall

Back to Top

TECHNICAL SPECIFICATIONS

Model KTL-PRO KTL-ZERO
KTL-PRO KTL-PRO-04 KTL-ZERO-A KTL-ZERO-B KTL-ZERO
-A-04
KTL-ZERO
-B-04
Temperature range 200~2000°C 300~2000°C 500~3000°C 200~1200°C 700~3000°C 300~1200°C
Display

2-way, 4 digit LED inside the viewfinder and on side panel

Measuring modes

CONT: continuous
PEAK: Max. value display(2 way)
VALLEY: Minimum value display(2 way)
HOLD: Hold

Measurement Accuracy ± 1% (at emissivity =1.00)
Repeatability ± 1°C  (at emissivity = 1.00)
Emissivity setup range 0.10 to 1.00 Digital 2 way
Response time

Sampling time: Adjustable from 0.01 to 1.0 seconds

Sensor InGaAs Si InGaAs Si InGaAs
Spectral response 1.6μm 0.9μm 1.6μm 0.9μm 1.6μm
Outputs 3 default output: RS 232C/DC 0~10 V/ DC4~20mA Option: Bluetooth
Optical System Model: Coaxial single-lens reflex
Field lens: f=127mm, F=4.2
Focal point adjustable range: 270mm~
Measured angle: 0.45
Finder: View angle=6.2

Active power supply AC 100~230V 50/60Hz (Supplied by AC adaptor)
Power consumption 30W (Supplied by AC adaptor)
Tolerance temperature 0~50C (Without dew drop)
Weight 1.4 Kg (Main unit only)


Back to Top

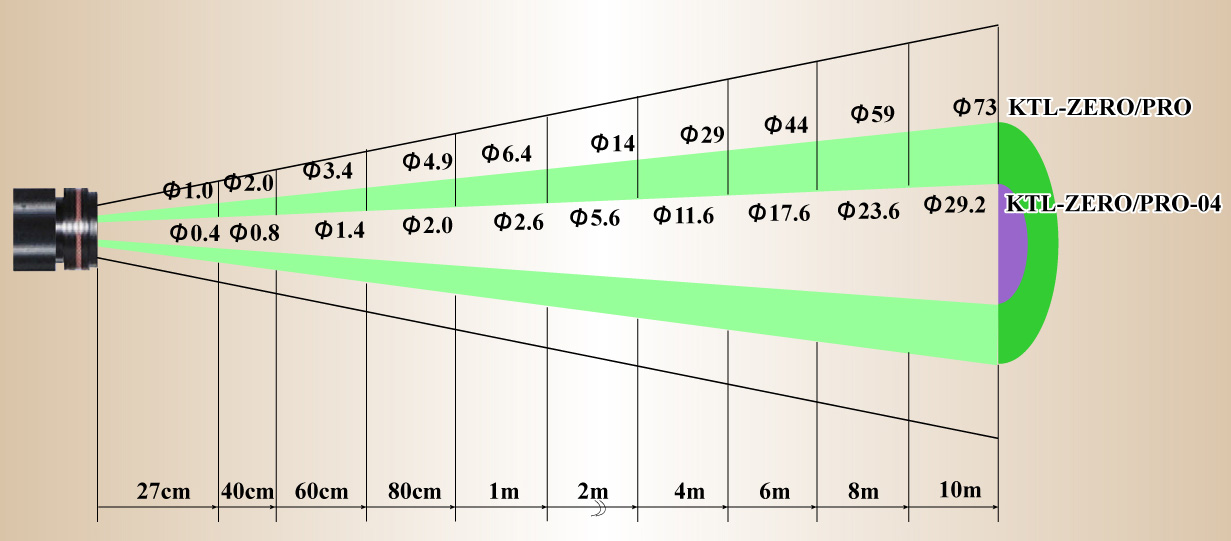

SPOT SIZE DETAILS AND FIELD OF VIEW DATA
SPOT SIZE DETAILS AND FIELD OF VIEW DATA
Minimum spot size at 270mm
KTL-P1: f1mm
KTL-P04: f0.4mm
Spot size at 1,000mm
KTL-P1: f6.4mm
KTL-P04: f3.2mm
Spot size at 5 meters
KTL-P1: f73mm
KTL-P04: f37mm

Click here to enlarge

VIEWFINDER DISPLAY

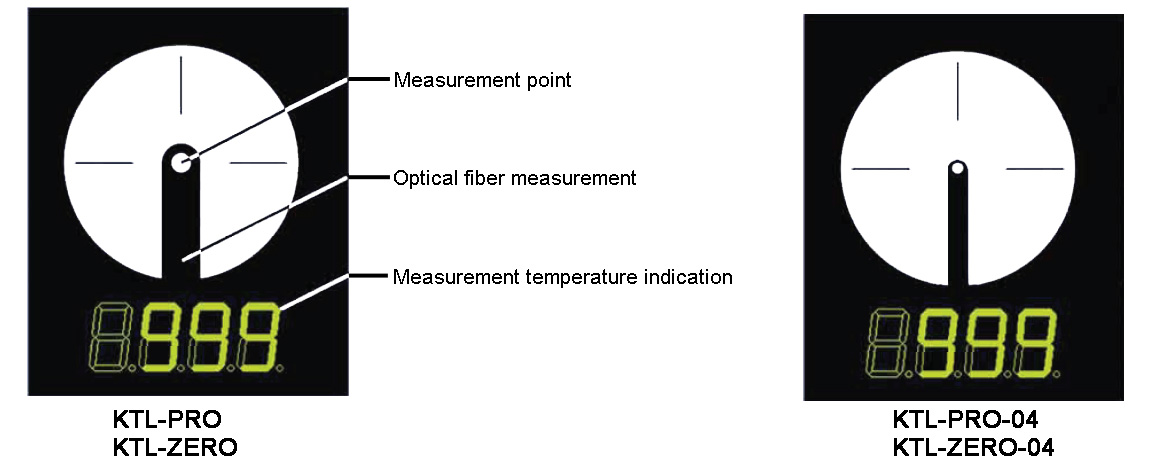

finder view
Click here to enlarge

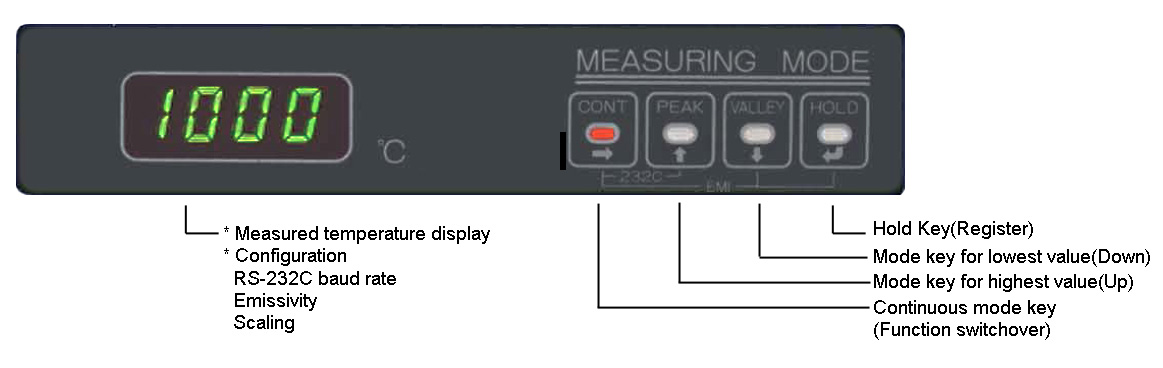

SIDE DISPLAY & FUNCTION KEYS
side navigational panel
Click here to enlarge

Back to Top

ANALOGUE SCALING SAMPLE
KTL-PRO KTL-ZERO
KTL-PRO 4~20mA scaled to 500~1500°C KTL-ZERO 0~10V scaled to 0(250)~1000°C

Back to Top

DIMENSIONS

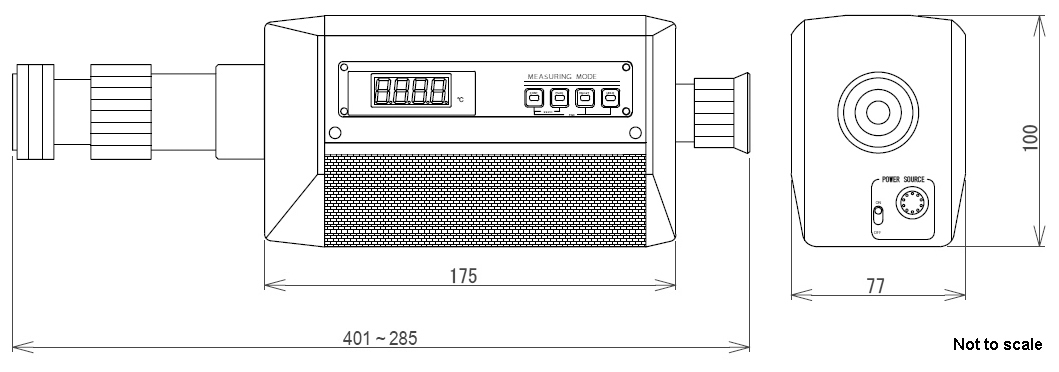

Appearance sizeAppearance size

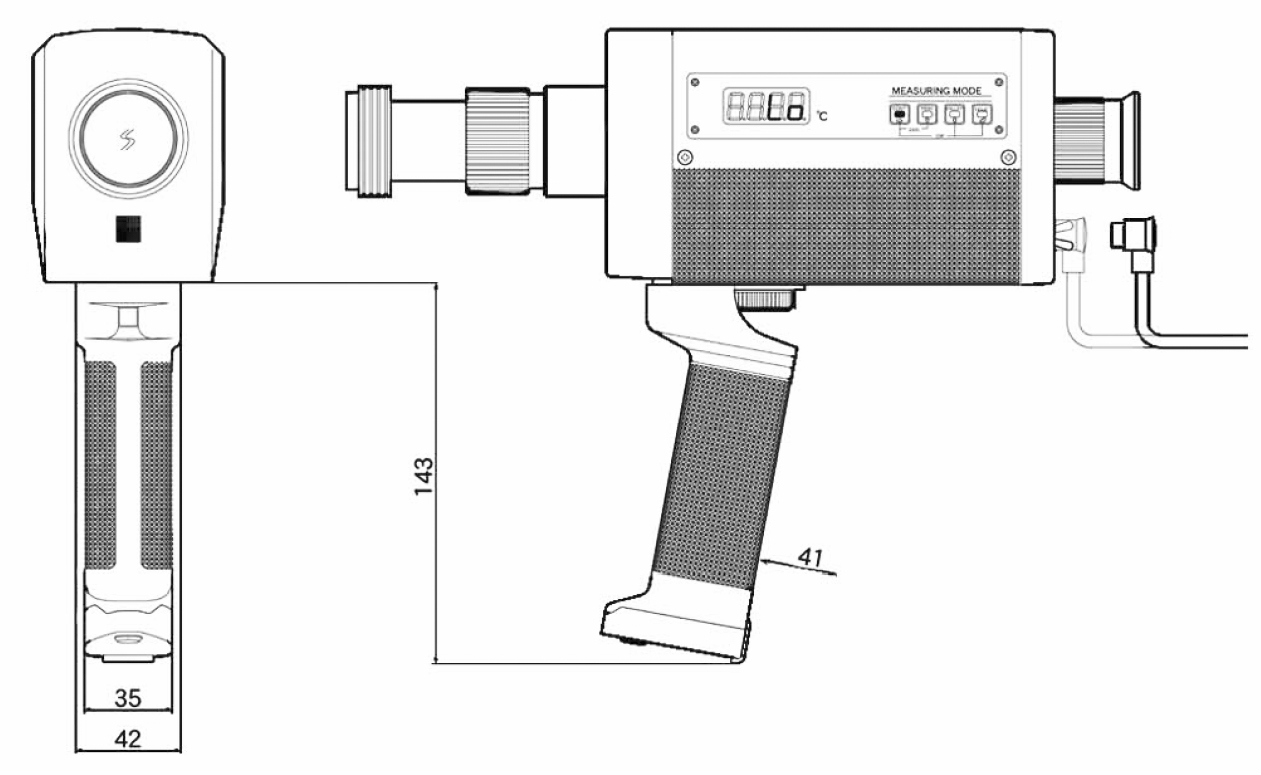

Grip mounting

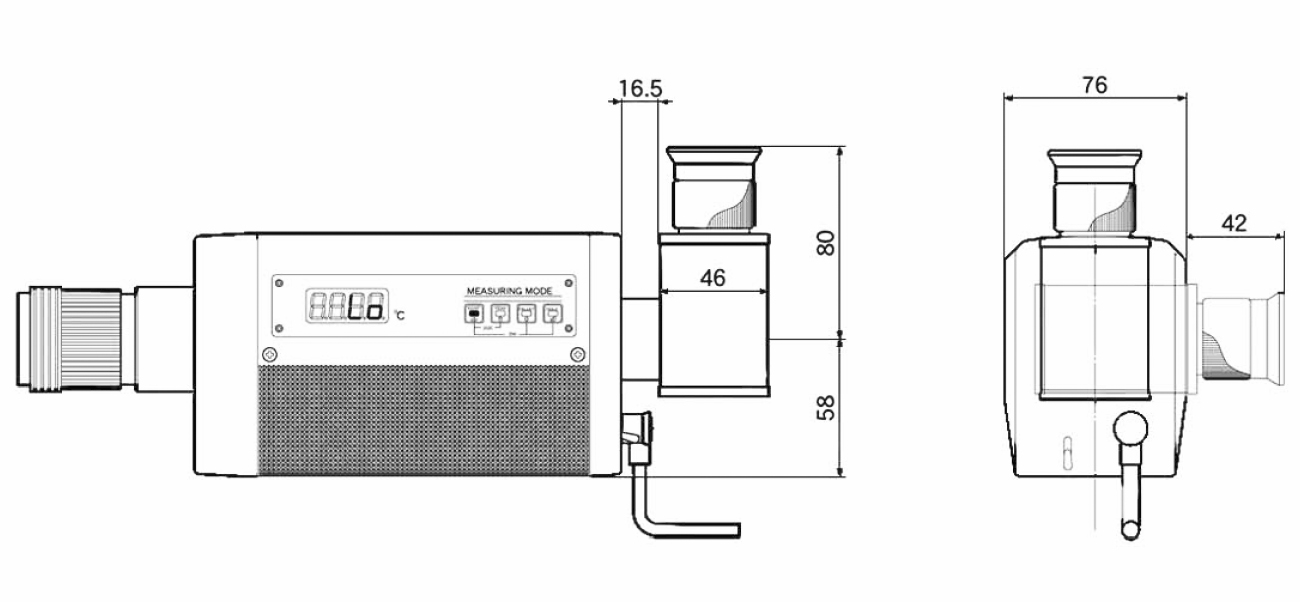

L shape mirror mounting

Back to Top

OPTION & ACCESSORIES

WIRELESS BLUE TOOTH DATA COMMUNICATION

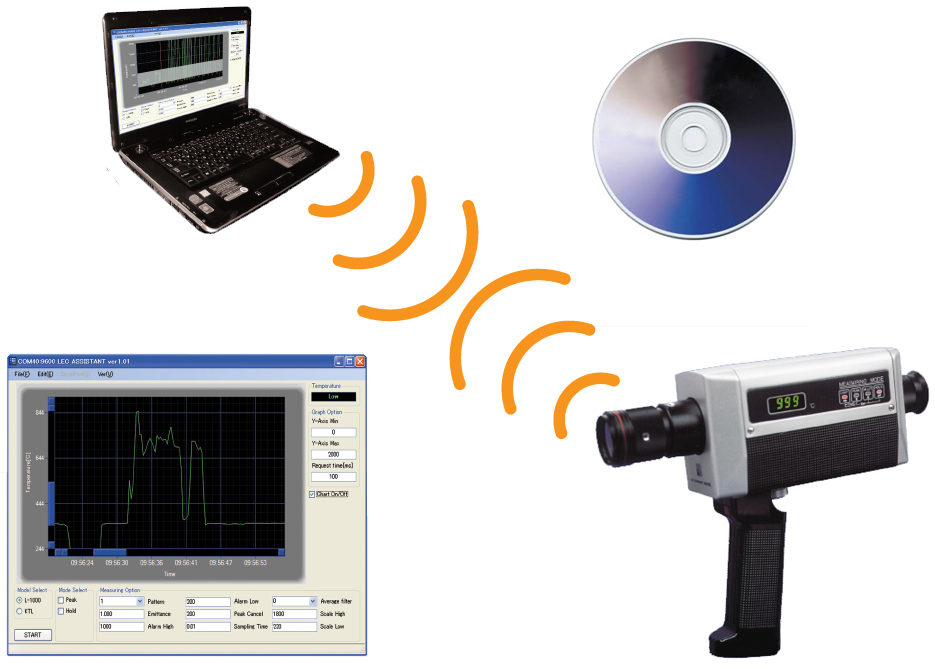

New models KTL-P1-B and KTL-P04-B are capable of communicating measured data to a remote PC using Bluetooth (Version 2.0 + EDR) for high speed wireless data transfer. Distance to remote PC can be 30~40 meters using optional micro USB adopter. Communication distance varies depending on surrounding environment. Software to collect and display measured data is suppled as standard accessory. Data can be displayed in graphical form and can be read and written in CSV format. Wireless
ACCESSORIES

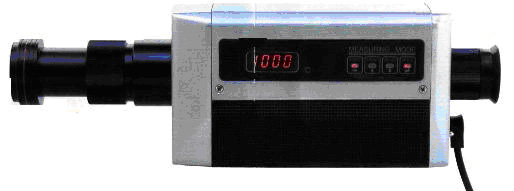

KTL-PRO (basic model) Pistol grip GL-ST Pistol grip GL-DX + +charger USB adapter
KTL-PRO (basic model) Pistol grip GL-ST Pistol grip GL-DX + +charger USB adapter

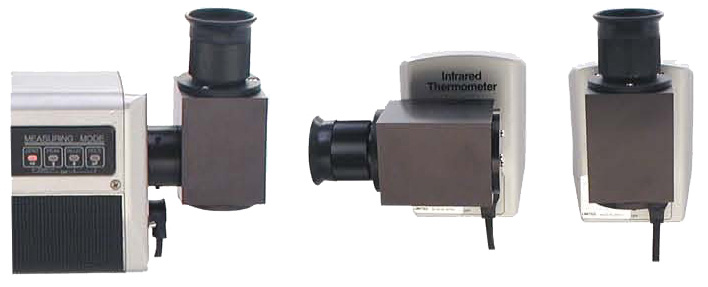

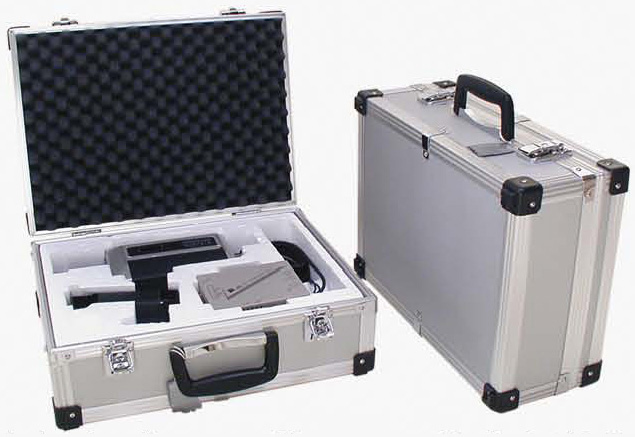

Carrying case CK-1 AC adopter PS-5 Right angle mirror LM-1
Carrying case CK-1 AC adopter PS-5 Right angle mirror LM-1
Swivel head LA-1B Swivel head LA-1G
Swivel head LA-1B Swivel head LA-1G DA converter

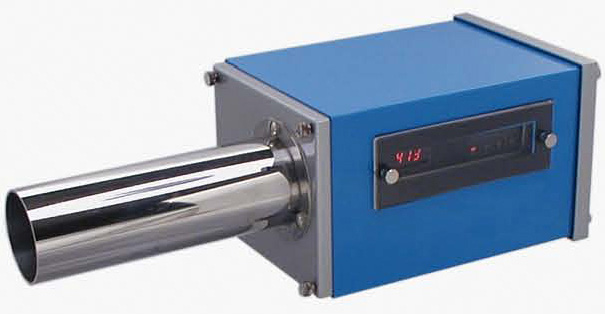

Air purge F02-002 Tripod U-8000

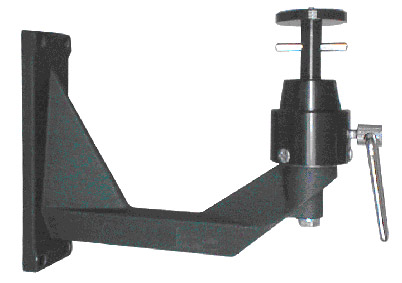

Air purge F02-002 Wall mount LA-2 Tripod U-8000 Tripod SL-68G
