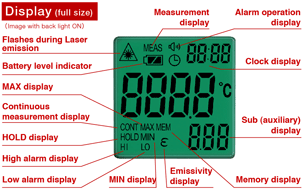

For a clear view of your measurement values, we
equipped the display with an EL back light. In addition, we
incorporated the large LCD with 3 display levels allowing more
information to be shown more clearly and with larger sized
characters.
As the EL back light is sensor activated, it lights
only when ambient light conditions are low.
Users will be
satisfied under many different lighting conditions at the ease of
reading the PT-80 display. |
 |
 |
Collecting and storing measurement data for reports
can be tedious..
For efficient use of measured data, we equipped
the PT-U80 with the ability to Send/Receive data when connected to a
PC via USB. Using imported data for creating reports is easy. With
the Preset Report Form it becomes even easier. Each data setting is
also possible on the PC side.
The software is downloadable from
our website. |
 |
 |

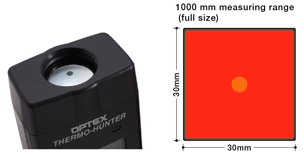

| If the laser pointer is shifted off-axis from an
actual measurement center, it is difficult to accurately locate it
again in the same place. To solve this difficulty, the PT-80 is
equipped with a co-axial laser marker which points at the exact
center of the measurement area, independent of working distance. |
 |
 |
Often, measurement from a long distance can be
difficult and sometimes impossible due to a wide measurement
area.
The PT-80’s measurement area is 30 x 30 mm from a distance
of 1 m. Even from 5 m, its long-focus design still manages an area
of only 150 x 150 mm. So safe and secure measurement is possible
even in difficult to reach or dangerous locations. |
 |
 |
 |
 |
 |
| Checking for hot spots in an electrical
panel. |
|
Checking for abnormal heating in a
bearing. |
|
|
|
|
 |
 |
 |
 |
|
The exclusive
software activates PT-U80 connected Computer* by USB attached.
Please read install manual carefully below before installing
the software. Optex is not responsible for any troubles in
installation.
1) Operation Check
Optex recommends
Computer installed Windows 2000 or XP with USB connector.
Minimum 256M is required for the proper function. USB Rev1.1
conformity. Another software are not identified."
2)
Operation may fail dpending on peripheral devices connected to
the Computer.
|
*About software installation |
| Installation manual |
 |
*The exclusive software
download |
| THERMO HUNTER setup.exe |
|
*Software explanation |
| About continuous recording |
 |
| About forwarding/adjusting memorized data |
|
| About teaching |
|
| About each adjustment |
|
|
  |
 |
|
