TMH91 Series - Infrared Thermo Spot Sensor TMH91.pdf (PDF)TMH-91
FEATURES
bullet Small & Lightweight by resin housing.
bullet The setting emissivity is possible at sensor head.
bullet High temp. type is very wide measurement range.
bullet Temp. range : 0~500℃(2types) & 0~1350℃(1type).
bullet High speed response 30msec.(analog output type only).
bullet Low temp. type is available to use as temperature sensor too.
bullet Only thermometer's sensor head measurement temperature is possible.

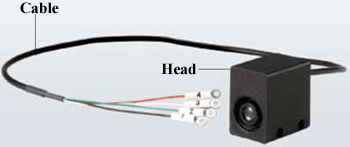

TMZ9

SPECIFICATIONS
  • MODELS & OPTIONS
Sensor head 2 type output
yAnalog outputz
Changeable to 4`20mA, 0`20mA, 0`1V, mV/,
Setting emissivity is possible on sensor head without external parameter setter.
yRS232Cz
To program the communication software for the setting by PC (Personal Computer) on your side is possible.

Power supply : DC4.7`27V, 0.1Amax.
wide arrow
When you need a parameter setter or display module, please use the following setters.
Thermometer connectable type

RS232C only
Red arrow
Indicating Setter TMC9-
Indicatin setter * Power supply : Selectable RS232C only
yAC85`115Vz or yDC10`27Vz
* Alarm output 1point as standard
* Analog output is option (Selectable in 4 types)

RS232C & AnalogRed arrow
Parameter Setter PWC1
* Handy type
* AA Battery x 4
* With communication cable 1.8m as accesorry between thermometer and PWC1

RS232C & AnalogRed arrow

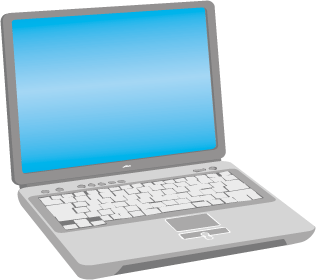

Parameter Setting Set PWZ1-SUP
Parameter setting set:
* Parameter writer software (PWS1)
* USB-RS232C converter (PWU1-U)
* Parameter setting cable (PWB1-PMP)
* Windows XP or Windows2000 in Japanese version is necessary for use of this parameter setting set.

Back to Top
  • THERMOMETER

Click to enlarge the chartRed arrow

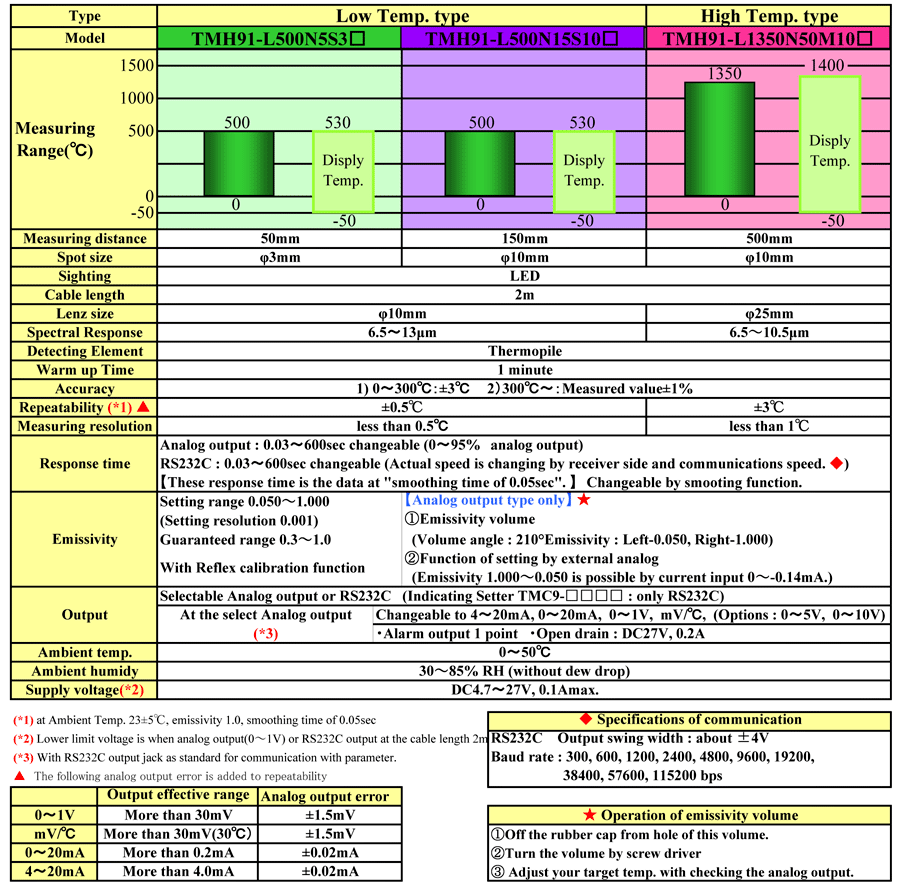

Specifications of Thermometer
Back to Top

  • INDICATING SETTER

Click to enlarge the chartRed arrow

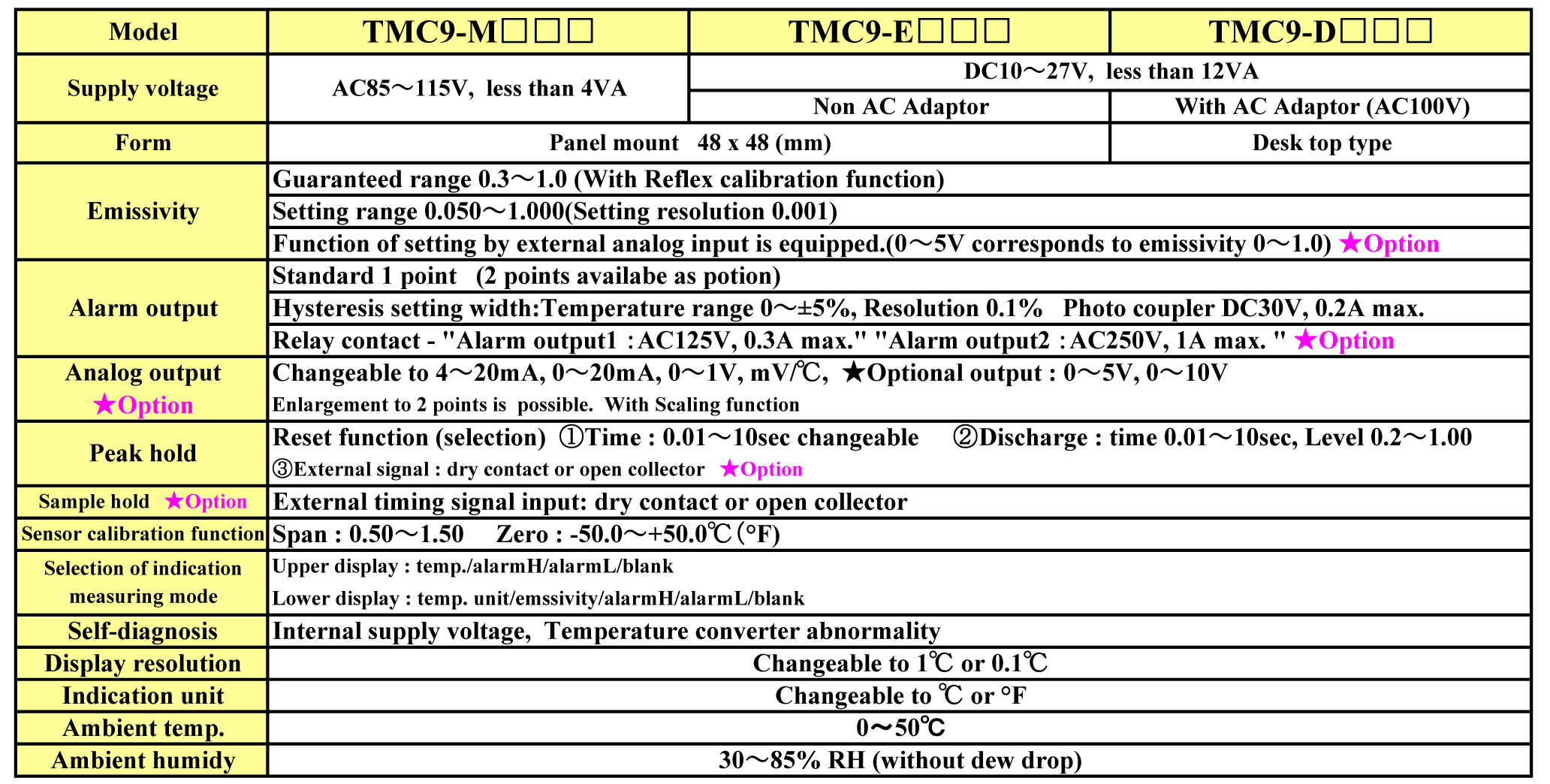

Specifications of Indicating setter
Back to Top

  • OPTICAL FUNCTIONS

Click to enlarge the chartRed arrow

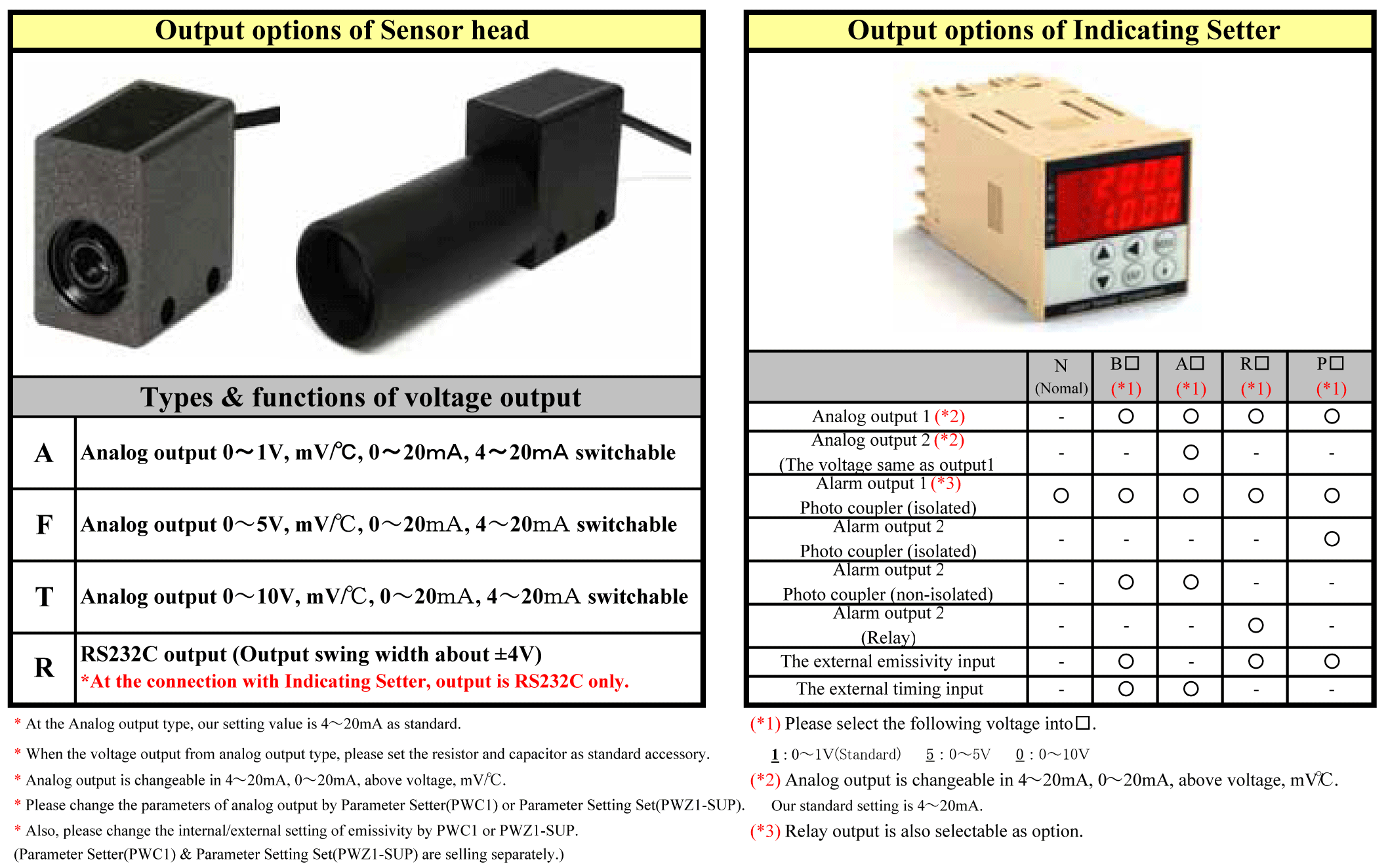

Specifications of Optional functions

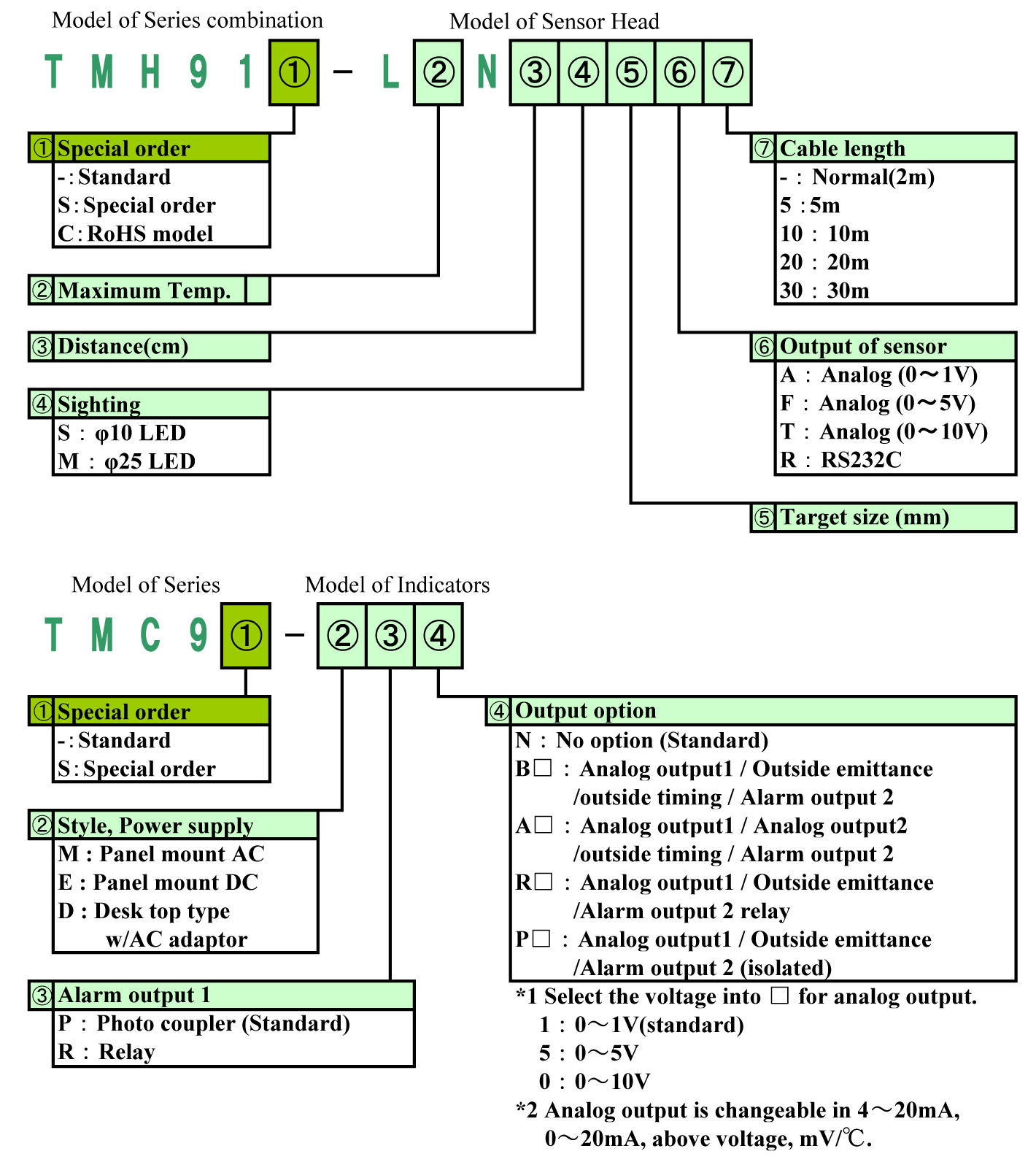

Chart of Optical Path Order Information
Click to enlarge

Click to enlarge

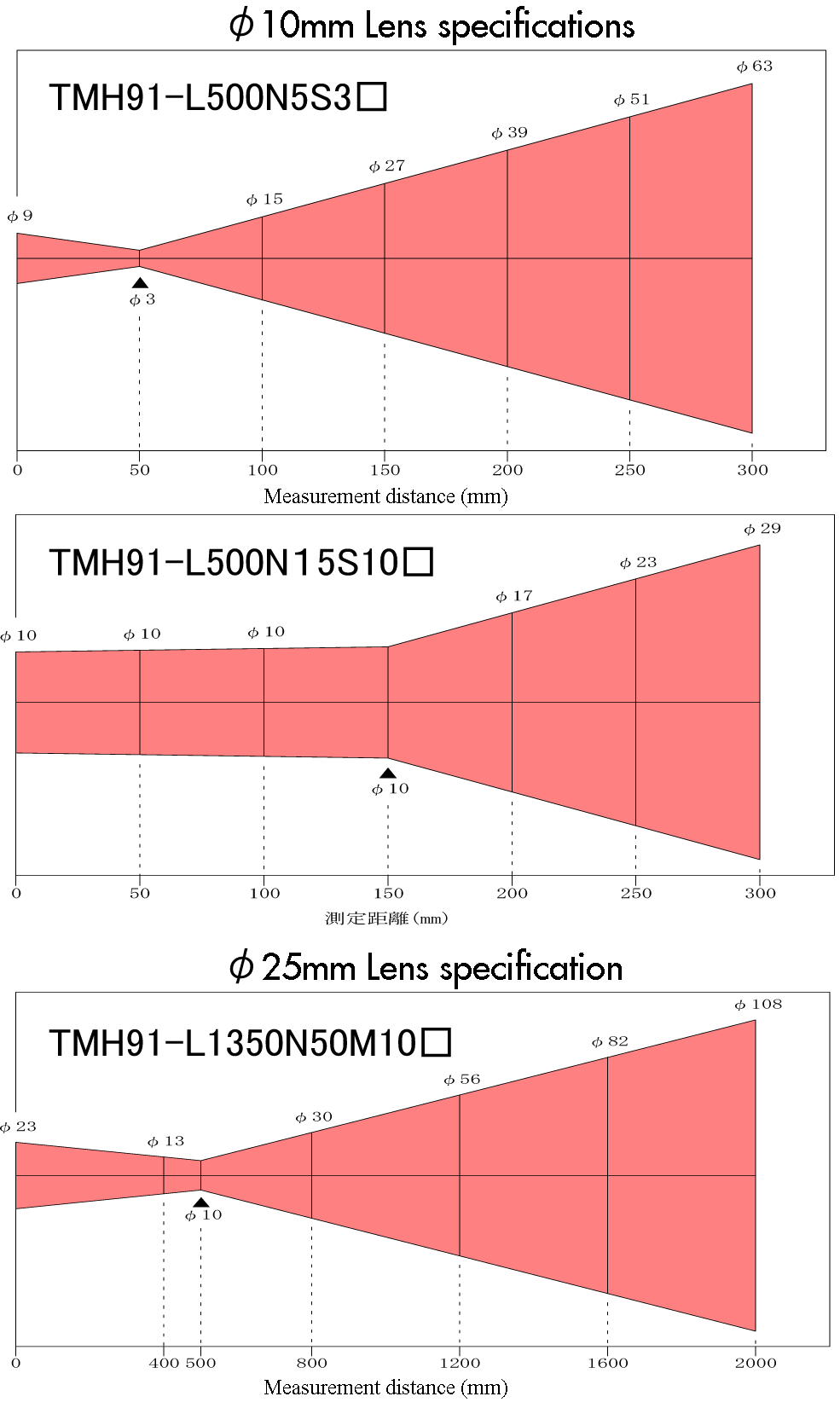

Chart of Optical Path

Order Information
Back to Top

  • SENSOR HEAD STRUCTURAL DRAWING

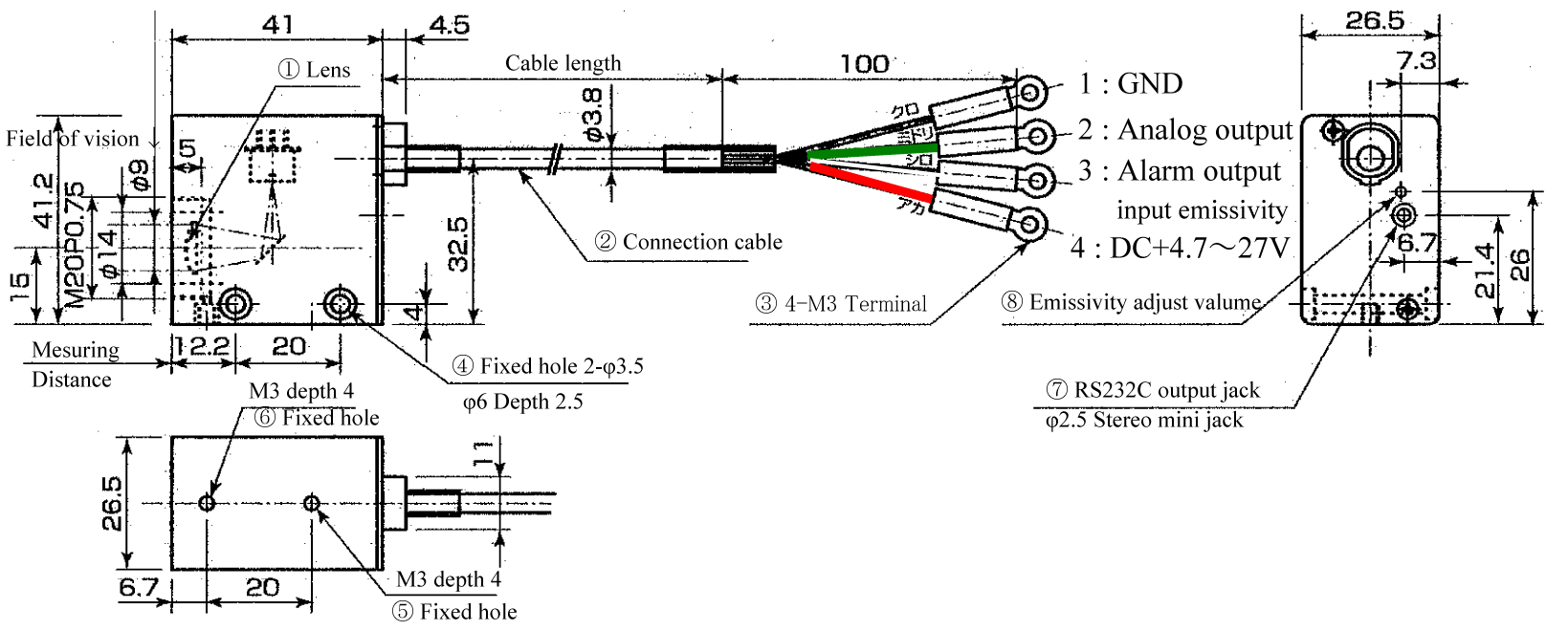

Low Temp. Type (Click to enlarge the drawing.)
TMH91-L500 (φ10mm Lens) Analog output
Low Temp. Type

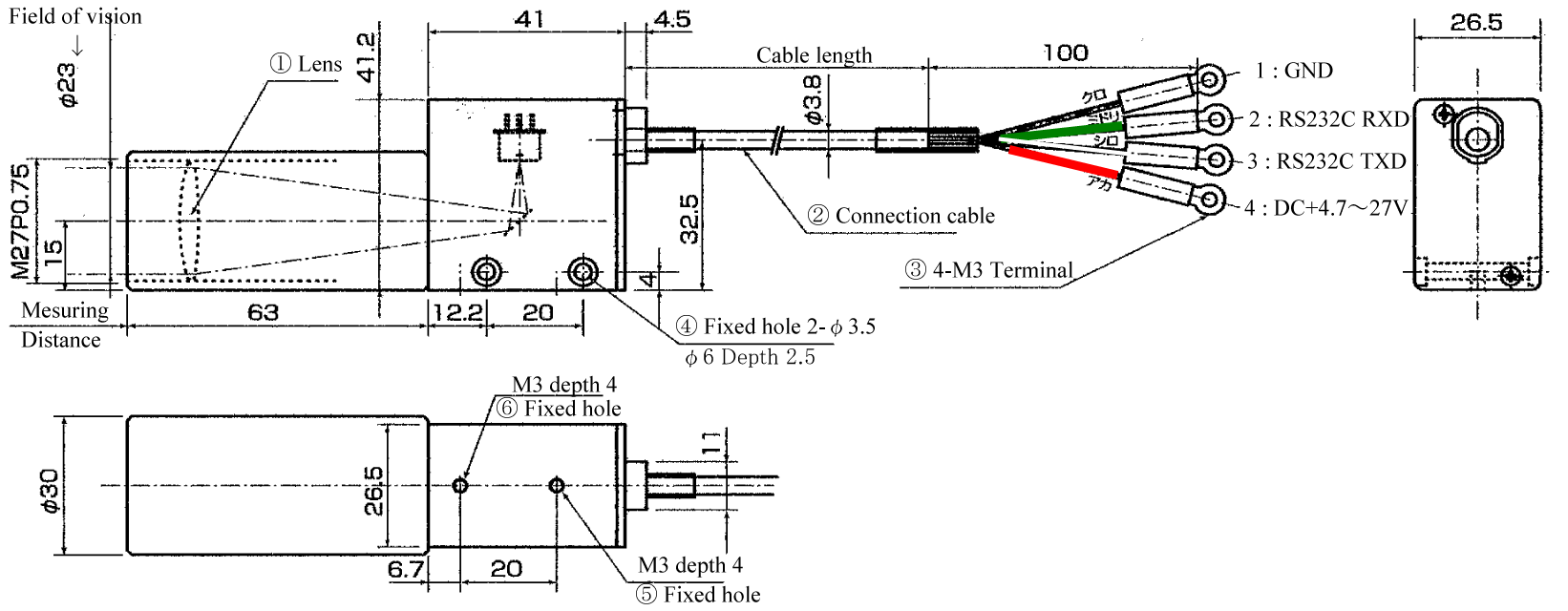

High Temp. Type (Click to enlarge the drawing.)
TMH91-L1350 (φ25mm Lens) RS232C
High Temp. type
Back to Top

APPLICATIONS (Click to enlarge each pictures .)

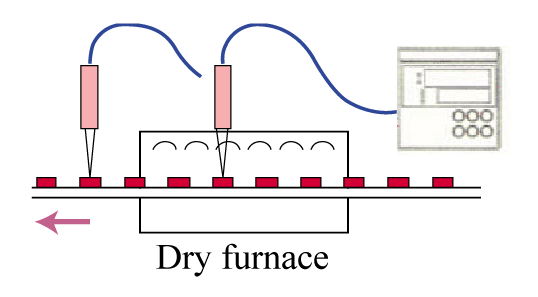

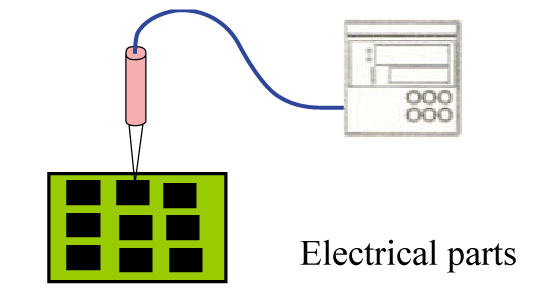

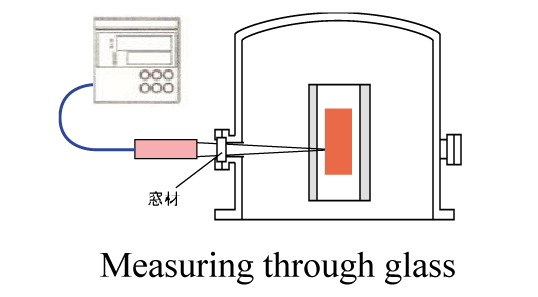

Electrical parts Dry furnace Measuring through glass

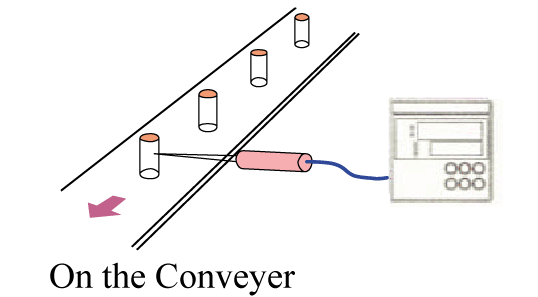

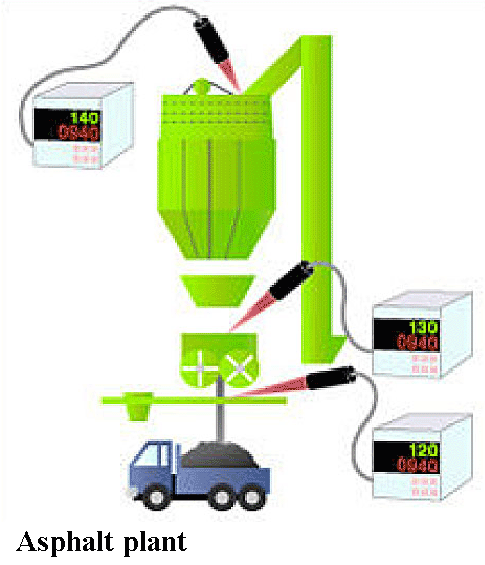

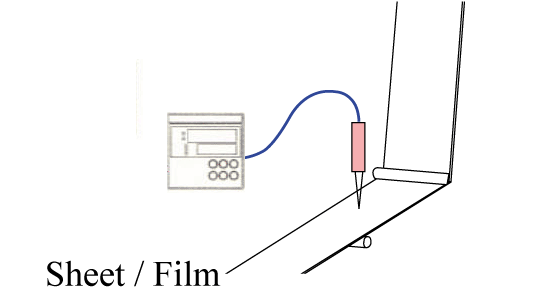

On the Conveyer Sheet/Film Asphalt plant

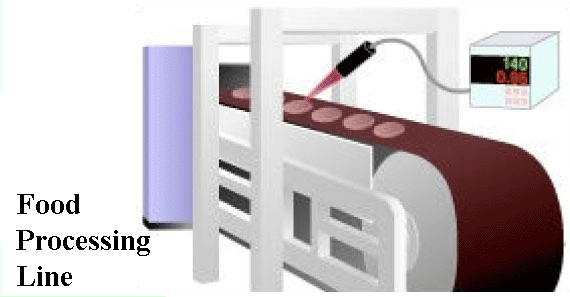

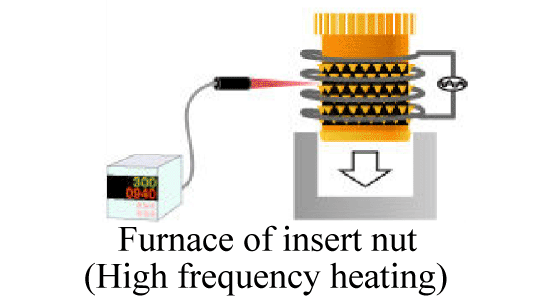

Furnace of insert nut(Hign frequency heating) Food precessing line
