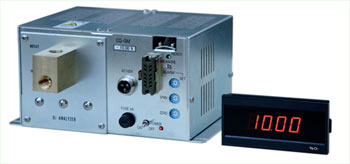

What's CG-SM

This is a small and light oxygen analyzer that has a detective element made of Zirconia electrolyte.

FEATURES

• Small amount sampling.
• Compact design.
• Simple structure, easy maintenance.

SPECIFICATIONS

Installation	Indoor type, Plane/Wall type *Meter: Panel type
Measuring range	10ppmO2 ~ 25%O2
Display	Digital 31/2 digit or 4 digit display
Range	1range : Decide in the above measuring range or display range. Min. range : 0-100ppmO2
Output	D.C.0-1V or D.C.4-20mA (Option)
Alarm	The high-alarm 1point C contact
Linearity	Less than ±1％FS
Responsibility	Less than ±1％FS
Response	90% reading in 10 sec. (Swinging to a high density side)
Drift	Less than ±2%FS/week
Sample Condition	Not include water, corrosive, halogen, combustible
Sample flow	100±10cc/min
Sampling	Introduce (positive pressure)
Sample pressure	0.01～0.05 MPa
Sample temperature	80°C MAX.
Piping	Inlet and Outlet　Rc1/4
Warm-up	About 20 minutes
Power	Power:AC100±10V 50/60Hz 200VA MAX.
Using temp.	-5~45°C
Accessory	Panel meter, Power cord(3m), Meter connection cord(3m)
Option	Flow meter with needle valve

*For the improvement, the specification and design may be changed without prior notice.
