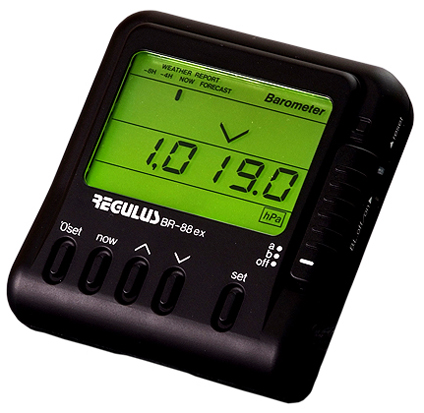

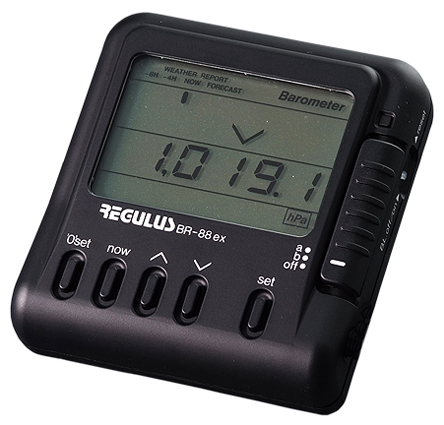

HIGH ACCURACY DIGITAL BAROMETER
Model: REGULUS BR-88ex ver.2 |
PDF catalog  |
|
|
FEATURES
- Backlit LCD
- Weather forecast function
- Built-in rechargeable battery
- Measurement for atmospheric pressure and altitude
- Available to attach certificate of analysis, proof certificate and traceability system drawing
|
 |
 |
SPECIFICATIONS
Unit |
hPa/meter |
| Measuring range |
540～1100hPa/-689 to 5006meter |
| Min. increment |
0.5hPa/5meter |
| Minimum unit of display for meter |
1 m |
| Accuracy |
Within ±0.5hPa (920～1040）
Within ±0.7hPa (FS) /at20℃ |
| Measuring error of temperature |
Max.1hPa(0～30℃) |
| Warm-up time |
1 second |
| Service ambient |
Temp.:0～40℃ Humidity:20～85%RH |
| Weight |
Approx. 110g (Main body only) |
| Standard color |
Black |
| Outer case coating |
Rubber coating |
| Case material |
ABS resin |
| Usage environment |
Temperature 0～40℃,
Humidity 20～85％, No condensation |
|
| Electrical power supply |
- Built-in rechargeable battery, charging time: approx. 8 hours (Usable life: Approx. 5 hours(Always on display / theoretical value)
- DC adaptor for exclusive use(88-D3) DC12V/24V for car
- AC adaptor for exclusive use(88-A4), household 100V 50/60Hz
|
|
|
ACCESSORY
- Fixed stand model 88-S1
- DC Adapter model 88-D3
|
- Carrying Case model 88-C2
- AC Adapter model 88-A4
|
|
DUE TO CONTINUOUS PRODUCT IMPROVEMENT, THE DESIGN AND TECHNICAL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
|
